Lumittari — Snow Estimation Demo

How It Works

End-to-End Detection Pipeline

From camera feed to billing data in five automated steps. The system processes video in real-time, detecting trucks, reading plates, and calculating snow loads without manual intervention.

1

Video Capture

Camera at the snow dumping polygon captures arriving trucks

2

Truck Detection

YOLOv12 identifies and localizes trucks in each frame

3

Plate Recognition

ALPR extracts license plate text with confidence scoring

4

Registry Lookup

Plate matched to vehicle registry for truck dimensions

5

Snow Estimation

Volume x SWE density = estimated snow weight

Step 1

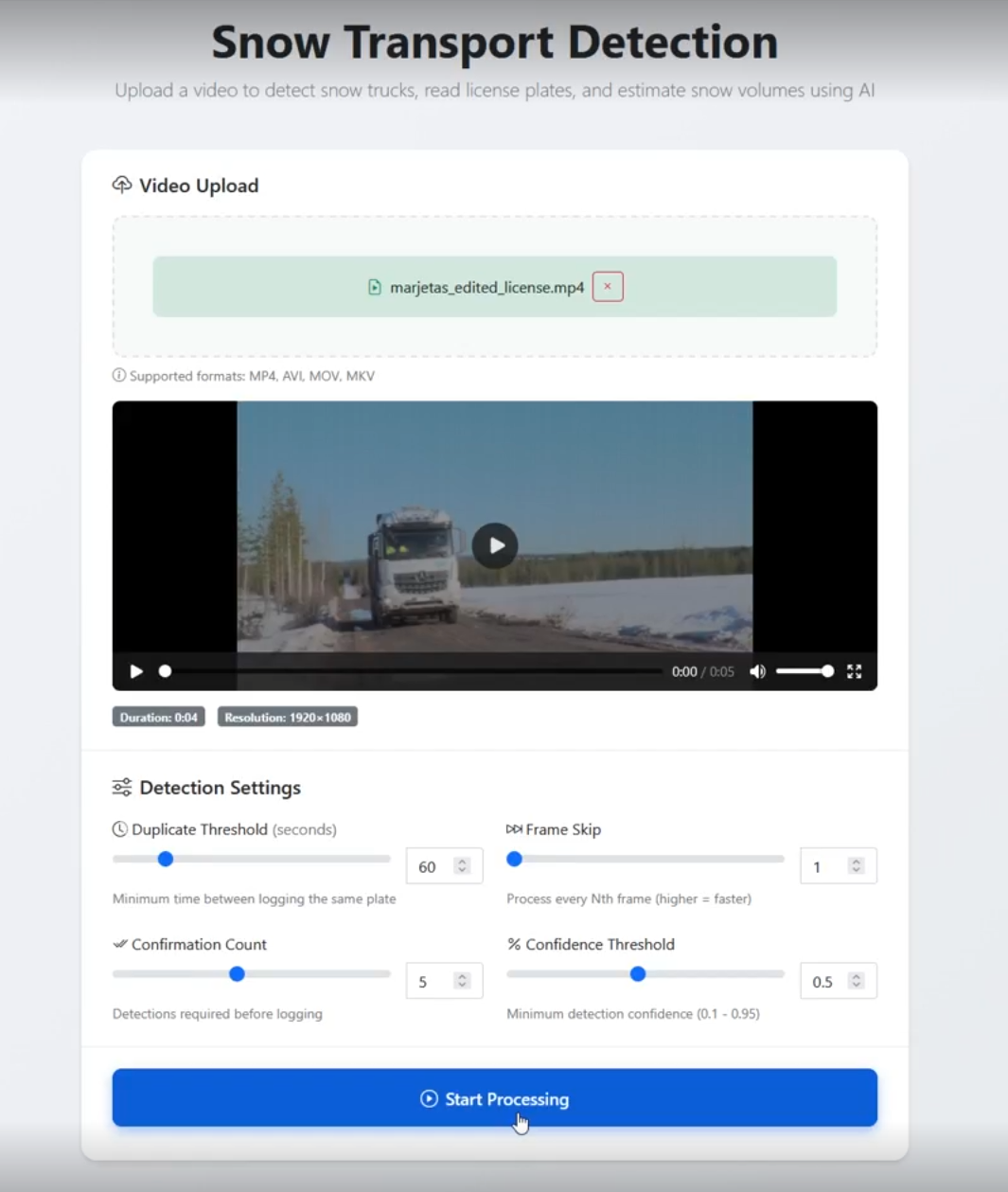

Video Upload & Configuration

Users upload video footage from the snow dumping polygon. The interface supports drag & drop, video preview, and configurable detection parameters — duplicate threshold, frame skip, confirmation count, and confidence level.

Video Upload

marjetas_edited_license.mp4

Supported formats: MP4, AVI, MOV, MKV

Duration: 0:04 Resolution: 1920x1080

Detection Settings

Duplicate Threshold (seconds)

Minimum time between logging the same plate

Frame Skip

Process every Nth frame (higher = faster)

Confirmation Count

Detections required before logging

Confidence Threshold

Minimum detection confidence (0.1 - 0.95)

AI-Powered

Uses YOLO12 and fast-alpr for accurate truck and plate detection

Vehicle Registry

Matches plates to truck dimensions for automatic volume calculation

Snow Estimation

Combines cargo volume with SWE data to estimate snow weight

Step 2

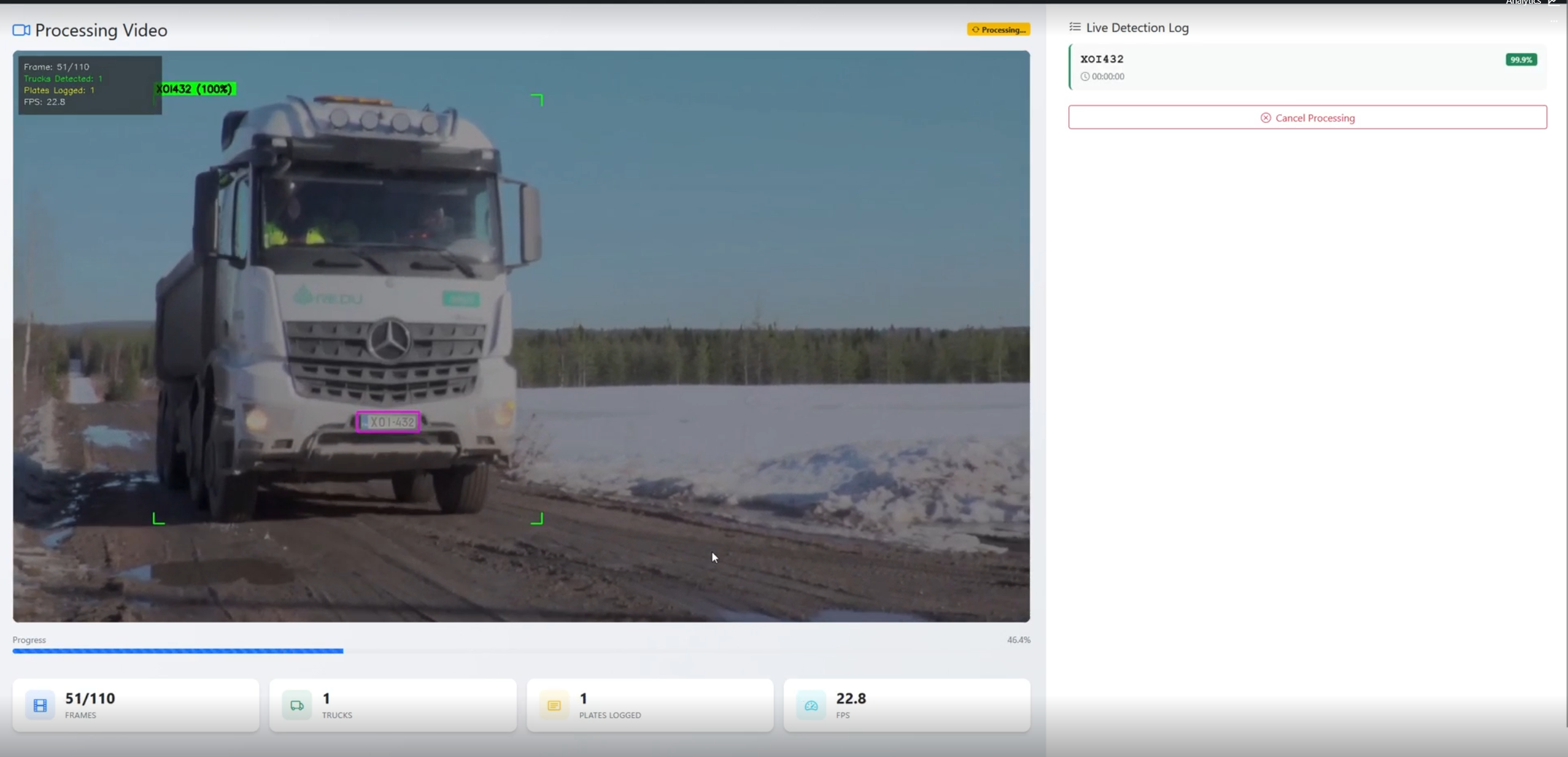

Real-Time Video Processing

The AI processes video frame by frame, detecting trucks and reading license plates in real-time. Annotated frames stream to the browser via Server-Sent Events with live stats and a detection log sidebar.

localhost:5000/process/marjetas_edited_license.mp4

51/110 Frames

1 Trucks

1 Plates Logged

22.8 FPS

Step 3

Detection Results & Snow Estimation

After processing, the system presents a complete dashboard: summary statistics, matched vehicle information with cargo bed dimensions, snow volume/weight estimates using SWE data, and a searchable detection log with confidence scores.

2

Total Detections

2

Unique Plates

98.0%

Avg Confidence

1

DB Matches

Matched Vehicle Information

XOI-432 DB Match

Volvo FMX 460 8x4

Pohjoinen Kuljetus Oy

Cargo Bed (L x W x H) 6.5 x 2.55 x 1.2 m

Cargo Volume 19.89 m3

Max Payload 25,000 kg

Gross Vehicle Weight 40,200 kg

Tare Weight 15,200 kg

Year 2022

Snow Load Estimate (100% fill)

19.89 Volume (m3)

6,962 Weight (kg)*

7.0 Weight (t)*

* Estimated using SWE = 350 kg/m3 (typical transported snow density)

Detection Log

#	Time	License Plate	Confidence	Frame	Company	Cargo Vol.
1	00:00:00	`XOI432`	99.9%	11	Pohjoinen Kuljetus Oy	19.89 m3
2	00:00:03	`XOI437`	96.1%	90	Not in DB	—

Vehicle Registry

Database & Snow Event Log

The system maintains a vehicle registry with detailed truck specifications and cargo bed dimensions. Every detected snow delivery is logged with volume/weight estimates for billing and analytics.

XOI-432 Volvo FMX 460 8x4 (2022)

Pohjoinen Kuljetus Oy

Cargo Bed (L x W x H)6.5 x 2.55 x 1.2 m

Cargo Volume19.89 m3

Max Payload25,000 kg

Tare Weight15,200 kg

GVW40,200 kg

Primary snow transport vehicle

GHI-789 Mercedes-Benz Arocs 3251 8x4 (2020)

Oulun Kuljetus ja Logistiikka Oy

Cargo Bed (L x W x H)6.2 x 2.5 x 1.15 m

Cargo Volume17.83 m3

Max Payload23,000 kg

Tare Weight14,600 kg

GVW37,600 kg

Multi-purpose dump truck

JKL-012 Sisu Polar Rock 8x4 (2024)

Rovaniemen Kuljetuspalvelu Oy

Cargo Bed (L x W x H)6.8 x 2.55 x 1.25 m

Cargo Volume21.68 m3

Max Payload26,000 kg

Tare Weight15,800 kg

GVW41,800 kg

Arctic-grade snow hauler

DEF-456 MAN TGS 35.510 8x4 (2023)

Tampereen Maansiirto Oy

Cargo Bed (L x W x H)7.0 x 2.55 x 1.3 m

Cargo Volume23.21 m3

Max Payload27,000 kg

Tare Weight16,500 kg

GVW43,500 kg

Heavy-duty regional transport

Snow Delivery Event Log

Recent snow delivery events recorded by the detection system

#	Date	License Plate	Detection Time	Confidence	Fill %	Snow Volume	SWE	Est. Weight
1	2026-04-06	`XOI432`	00:00:00	99.9%	100.0%	19.89 m3	350.0 kg/m3	6,962 kg
2	2026-04-06	`XOI432`	00:00:01	100.0%	100.0%	19.89 m3	350.0 kg/m3	6,962 kg
3	2026-04-06	`XOI432`	00:00:01	100.0%	100.0%	19.89 m3	350.0 kg/m3	6,962 kg
4	2026-04-06	`XOI432`	00:00:00	100.0%	100.0%	19.89 m3	350.0 kg/m3	6,962 kg
5	2026-04-06	`XOI432`	00:00:00	99.8%	100.0%	19.89 m3	350.0 kg/m3	6,962 kg
6	2026-02-24	`XOI432`	00:00:00	100.0%	100.0%	19.89 m3	350.0 kg/m3	6,962 kg
7	2026-02-24	`XOI432`	00:00:00	100.0%	100.0%	19.89 m3	350.0 kg/m3	6,962 kg
8	2026-02-09	`XOI432`	00:00:02	100.0%	100.0%	19.89 m3	350.0 kg/m3	6,962 kg
